BFM-Zero: A Promptable Behavioral Foundation Model for Humanoid Control Using Unsupervised Reinforcement Learning

Yitang Li*   Zhengyi Luo*   Tonghe Zhang$   Cunxi Dai$
Anssi Kanervisto   Andrea Tirinzoni   Haoyang Weng
Kris Kitani   Mateusz Guzek   Ahmed Touati   Alessandro Lazaric   Matteo Pirotta†   Guanya Shi†
* Equal contribution    $ Equal contribution    † Equal advising
IP
Meta
PDF ArXiv Video Summary Code (Coming Soon)

Video

Teaser Video

Abstract

Building Behavioral Foundation Models (BFMs) for humanoid robots has the potential to unify diverse control tasks under a single, promptable generalist policy. However, existing approaches are either exclusively deployed on simulated humanoid characters, or specialized to specific tasks such as tracking. We propose BFM-Zero, a framework that learns an effective shared latent representation that embeds motions, goals, and rewards into a common space, enabling a single policy to be prompted for multiple downstream tasks without retraining. This well-structured latent space in BFM-Zero enables versatile and robust whole-body skills on a Unitree G1 humanoid in the real world, via diverse inference methods, including zero-shot motion tracking, goal reaching, and reward optimization, and few-shot optimization-based adaptation. Unlike prior on-policy reinforcement learning (RL) frameworks, BFM-Zero builds upon recent advancements in unsupervised RL and Forward-Backward (FB) models, which offer an objective-centric, explainable, and smooth latent representation of whole-body motions. We further extend BFM-Zero with critical reward shaping, domain randomization, and history-dependent asymmetric learning to bridge the sim-to-real gap. Those key design choices are quantitatively ablated in simulation. A first-of-its-kind model, BFM-Zero establishes a step toward scalable, promptable behavioral foundation models for whole-body humanoid control.

Approach

An overview of the BFM-Zero: After the pre-training stage, BFM-Zero forms a latent space that can be used for zero-shot inference and few-shot adaptation.

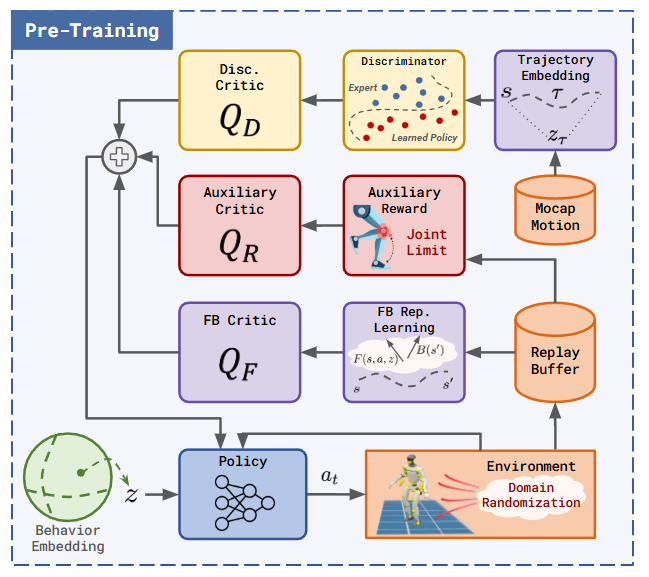

Pre-training Image

Objective: Learn a unified latent representation that embeds tasks (e.g., target motions, rewards, goals) into a shared space and a promptable policy that conditions on this representation to perform diverse tasks without retraining.

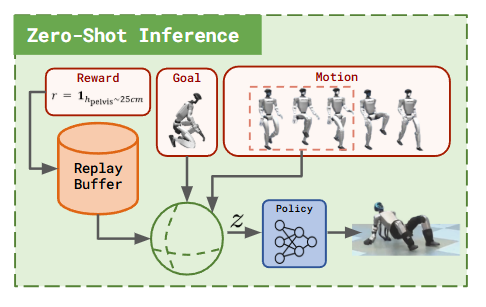

Inference Image

BFM-Zero can zero-shot perform tasks including motion tracking, goal reaching, and reward optimization.

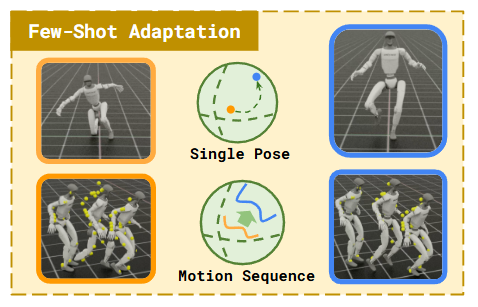

Adaptation Image

BFM-Zero supports few-shot adaptation to quickly adapt to specific requirements with minimal additional training.

How it works: Unsupervised RL and Zero-shot inference

In pre-training, BFM-Zero aims to learn a latent space $z\in Z$, a forward $\boldsymbol{F}(s, a, z)$ and a backward $\boldsymbol{B}(s)$ representations, and a $z$-conditioned policy $\pi_z$ such that:

  1. Starting from $\{s,a\}$ and follow $\pi_z$, the visitation probability of $s'$ is approximately $\boldsymbol{F}(s, a, z)^\top$$\boldsymbol{B}(s')$.
  2. The Q-function of $\pi_z$ is given by $\boldsymbol{F}^\top $$z$ but not learned with supervision from any task-related rewards.
  3. In inference time, for various objectives (goal reaching, tracking, reward optimization), we can use following fomulas to compute $z$ in a zero-shot way:
Goal Reaching
Natural transitions to any goal pose

Input: Target goal pose $s_g$

$$z = B(s_g)$$
Motion Tracking
Real-time motion following

Input: Target reference motion $\{s_1, ..., s_T\}$

$$z_t = \sum_{n}^N \lambda^n B(s_{t+n})$$

$N$ is the window-size for tracking.

Reward Optimization
Optimize reward functions in inference-time

Input: Any given reward function $r(s)$

$$z = \sum_{i} B(s_i)r(s_i)$$

$s_i$ is the $i$-th state in the buffer.

🔑 Remark: Compared to other frameworks, we don't give the model any specific（task-related） reward in the training, i.e., it is an unsupervised RL problem. Moreover, the learned representation $\boldsymbol{F}$, $\boldsymbol{B}$ and latent $Z$ are aware of humanoid dynamics.

The well-regularized, dynamics-aware latent space ✨ also enables natural and smooth transitions during goal reaching, natural and gentle recovery in motion tracking and disturbance rejection, zero-shot reward optimization (for any given reward at test time), and efficient few-shot adaptation ⚡.

Zero-shot Inference

ALL demos are real-time (except for the tracking highlight) and from the same policy.

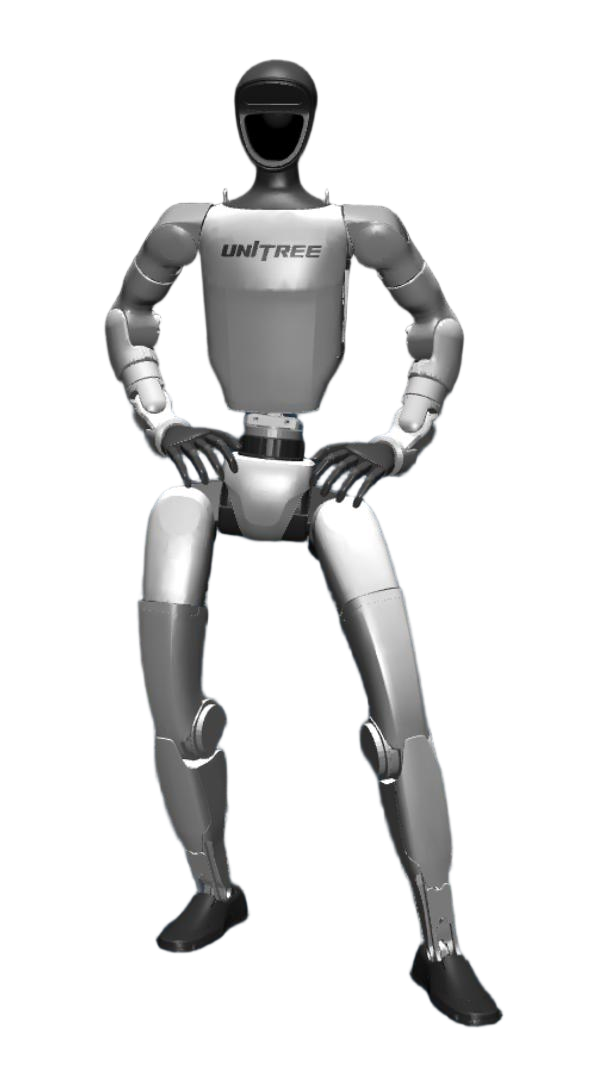

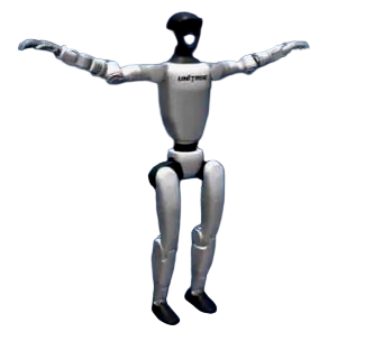

Goal Reaching

Click image for real-world goal pose, click ▶ for natural transition, and drag the progress bar to view frame by frame.

00:00.00

We also test diverse initial on the ground pose to a standing pose. Follow the gallery to see the full description of the performance.

Motion Tracking

Check our highlight tracking video in dancing with safe, natural, and gentle recovery even when confronted with unexpected falls.

More motion tracking demos including styled locomotion, boxing, playing ball games and dancing. All demos come from a single, continuous video shooting with the same policy.

Reward Optimization

We do not have any labeled(task-related) rewards in training. The reward inference (optimization) happens in the test time. Users can prompt in any type of reward function w.r.t. the robot states, and the policy zero-shot output the optimized skills without retraining. ($R$ below is the rewards.)

Basic Locomotion

We enable the robot to perform basic locomotion tasks including standing still, walking forward/backward/sideways, turning left/right.

Maintains stable standing posture without movement.

$$R = (\mathrm{head\_height} = 1.2\mathrm{m}) \wedge (\mathrm{base\_vel} = 0\mathrm{m/s})$$

Forward walking at 0.7m/s

$$R = (\mathrm{head\_height} = 1.2\mathrm{m}) \wedge (\mathrm{base\_vel\_forward} = 0.7\mathrm{m/s})$$

Sideways movement to the left at 0.3m/s

$$R = (\mathrm{head\_height} = 1.2\mathrm{m}) \wedge (\mathrm{base\_vel\_left} = 0.3\mathrm{m/s})$$

Backward walking at 0.3m/s

$$R = (\mathrm{head\_height} = 1.2\mathrm{m}) \wedge (\mathrm{base\_vel\_backward} = 0.3\mathrm{m/s})$$

Sideways movement to the right at 0.3m/s

$$R = (\mathrm{head\_height} = 1.2\mathrm{m}) \wedge (\mathrm{base\_vel\_right} = 0.3\mathrm{m/s})$$

Anticlockwise turning at 5.0 rad/s

$$R = (\mathrm{base\_height} > 0.5\mathrm{m}) \wedge (\mathrm{base\_ang\_vel\_z} = 5.0\mathrm{rad/s})$$

Clockwise turning at 5.0 rad/s

$$R = (\mathrm{base\_height} > 0.5\mathrm{m}) \wedge (\mathrm{base\_ang\_vel\_z} = -5.0\mathrm{rad/s})$$

Arm Control

Put down the arm (low) or Raise the arm (high)

$$R_{\text{low}} = 1 - \min\{|\mathrm{wrist\_height} - 0.7\mathrm{m}| - 0.1\mathrm{m}\} = (\mathrm{wrist\_height} \in [0.6, 0.8]\mathrm{m})$$ $$R_{\text{high}} = \min\{(\mathrm{wrist\_height} - 1.0\mathrm{m}), 1\} = (\mathrm{wrist\_height} > 1.0\mathrm{m})$$

Reward = Right wrist & Left wrist

Right wrist =
Left wrist =
Select reward values to show image

Base Height Control

Low-height Forward Motion
Base Height = 0.6m & Go Forward
Seated Crouch
Base Height = 0m
Supported Crouch
Base Height = 0.25m & Higher Knee
Grounded Crouch
Base Height = 0m & Higher Knee

Behavior Diversity

By sampling different sub-buffers from the replay buffer, we can find different behaviors even with the same reward function.

$$R = (\mathrm{left\_wrist\_height} \in [0.6, 0.8]\mathrm{m}) \wedge (\mathrm{right\_wrist\_height} > 1\mathrm{m})$$

Observation:

  • 1. All five poses satisfy the reward function
  • 2. The lower-body postures have some differences
  • 3. The upper-body postures, especially the right arm in the last pose, have significant differences

Skill Composition

Taking the arm control and basic locomotion as examples, we can combine them to form new skills.

$$R = w_{\text{arm}} \cdot R_{\text{arm}} + w_{\text{loco}} \cdot R_{\text{loco}} $$

Here, w is the corresponding weight for the reward function, we express low as "l", high as "h", "arm-l-h" means the right wrist is low and the left wrist is high.

Note: All demos are from a continuous video shooting with the same policy.

▶
backward & arms-h-h
▶
strafe-right & arms-h-h
▶
strafe-left & arms-h-l
▶
forward & arms-h-l
▶
backward & arms-h-l
▶
strafe-right & arms-h-l
▶
forward & arms-l-h
▶
backward & arms-l-h
▶
strafe-right & arms-l-h
▶
forward & arms-l-l
▶
strafe-left & arms-l-l
▶
backward & arms-l-l
▶
strafe-right & arms-l-l
▶
turn anticlockwise & arms-l-l
▶
turn clockwise & arms-l-l
▶
turn-anticlockwise & arms-h-l
▶
turn-anticlockwise & arms-l-h
▶
strafe-left & arms-h-h

Note: Right/Left is relative to the robot; the reward functions are for illustration purposes, in the inference time, we also have some soft constraints and regularization terms.

Natural Recovery from Large Disturbance

We demonstrate the robustness and flexibility of BFM-Zero: The policy enables the humanoid robot to recover gracefully from various disturbances, including heavy pushes, torso kicks, ground pulls, and leg kicks.

Highlight: Natural recovery from pulling to the ground

Highlight: Emergent behavior (running) from heavy pushes

Few-shot Adaptation

We demonstrate BFM-Zero's few-shot adaptation capability, the smooth structure of our latent space enables efficient search-based optimization in simulation to discover a better latent instead of directly using zero-shot inference within a short time.

Adaptation Setting

When the robot carries a 4kg payload on its torso, we can perform adaptation to let the robot keep single-leg standing for longer time.

Before Adaptation

Adaptation in Sim
for less than 2 minutes
→

After Adaptation

Space Interpolation

The structured nature of the learned space enables smooth interpolation between latent representations. We can leverage Spherical Linear Interpolation to generate intermediate latent vectors along the geodesic arc between the two end-points.

$$z_{t} := \frac{\sin((1-t)\theta)}{\sin \theta}z_0 + \frac{\sin(t\theta)}{\sin \theta}z_1, \quad \theta := \arccos\left(\langle z_0, z_1 \rangle\right), \ z_0\ne z_1, t\in[0,1].$$

We can see simple interpolation shows meaningful semantic-level changes.

$z_0: \text{strafe-left}, z_1: \text{strafe-right}$

$z_0: \text{arms-low-low}, z_1: \text{arms-low-high}$
